Product Description
The 10000 Watt 100KW All in One Solar Panel System is a configurable solar package combining solar modules, a charge controller, an inverter, battery storage, cables, and a mounting structure in one quoted set. The range covers 10 kW (10,000 Watt), 50 kW, and 100 kW configurations, so buyers specify the required capacity at enquiry. The standard configuration uses monocrystalline silicon modules, an MPPT controller, and lithium-ion batteries; gel battery configurations, as shown in the component diagram below, are available on request. The system supports on-grid, off-grid, and hybrid operating modes for residential, commercial, agricultural, and industrial sites.
Item | Specification |
|---|---|
Warranty | 1 year, 25 Years Life Time |
Free Installation Service | NO |
Place of Origin | Jiangsu, China |
Brand Name | EFI |
Model Number | Any |
Application | Home, Solar panel |
Solar Panel Type | Monocrystalline Silicon |
Battery Type | Lithium Ion |
Controller Type | MPPT |
Mounting Type | Roof Mounting |
Load Power (W) | 50KW |
Output Voltage (V) | 110V / 220V / 380V |
Output Frequency | 50 / 60 Hz |
Work Time (h) | 24 Hours |
Certificate | CE, ISO9001 |
Product Name | 10000 Watt 100KW All in One Solar Panel System |
Material | Aluminum 6063 and Stainless Steel |
Surface Treatment | Anodized, Powder Coating, Polished, etc. |
Wind Load | 150 KM/H |
Snow Load | 1.4 KN/m² |
Model Type | Frame |
Color | Natural |

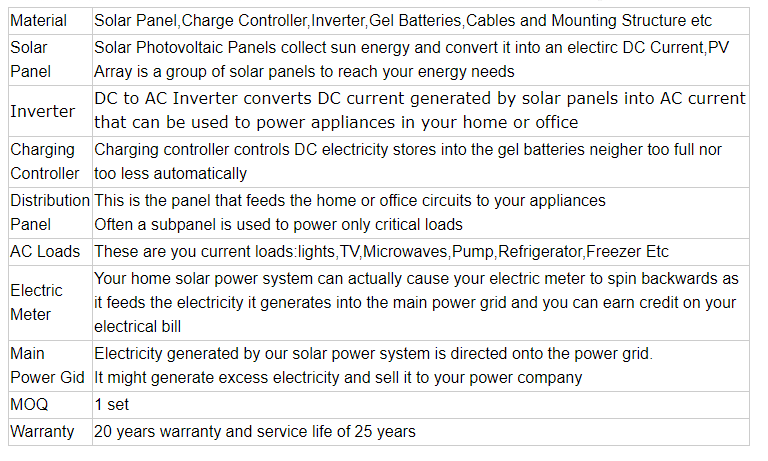

System Part | Description |
|---|---|
Material | Solar Panel, Charge Controller, Inverter, Gel Batteries, Cables and Mounting Structure etc |
Solar Panel | Solar Photovoltaic Panels collect sun energy and convert it into an electric DC Current, PV Array is a group of solar panels to reach your energy needs |
Inverter | DC to AC Inverter converts DC current generated by solar panels into AC current that can be used to power appliances in your home or office |
Charging Controller | Charging controller controls DC electricity stores into the gel batteries neither too full nor too less automatically |
Distribution Panel | This is the panel that feeds the home or office circuits to your appliances. Often a subpanel is used to power only critical loads |
AC Loads | These are you current loads: lights, TV, Microwaves, Pump, Refrigerator, Freezer Etc |
Electric Meter | Your home solar power system can actually cause your electric meter to spin backwards as it feeds the electricity it generates into the main power grid and you can earn credit on your electrical bill |
Main Power Grid | Electricity generated by our solar power system is directed onto the power grid. It might generate excess electricity and sell it to your power company |
MOQ | 1 set |
Warranty | 20 years warranty and service life of 25 years |
Modules, controller, inverter, batteries, cables, and structure are supplied as one matched set, reducing separate sourcing and simplifying site coordination.
The system can be configured for on-grid, off-grid, or hybrid use, with lithium-ion batteries as standard and gel batteries available for specified projects.
Configurations are available from 10 kW (10,000 Watt) through 50 kW to 100 kW, allowing the set to be sized to stated load and site conditions.
Homes, offices, warehouses, and production facilities can use the system for lighting, appliances, and scheduled loads according to the selected capacity.
Agricultural operations, locations with limited grid access, and sites requiring backup power can use off-grid or hybrid configurations; actual run time depends on load and battery capacity.
Yes. On-grid, off-grid, and hybrid modes are supported; the controller and battery configuration are selected according to site conditions.
The specification table documents a 1-year warranty and a 25-year design service life. The 20-year warranty term shown in the component diagram applies to project-specific configurations and is confirmed in the quotation.
The set is pre-engineered, and installation is completed by local electrical technicians using the supplied layout. Buyers provide site location, load data, and preferred capacity.
Panel cleaning, inspection of cable connections, and monitoring of battery condition are the recurring tasks; service intervals depend on site conditions.
Industrial clients can send load details, site location, and required capacity to receive a configuration sheet and quotation.
