Complete Guide to Assembling Your Own Solar Tracking System

Building a diy solar tracker is a good idea if you want your solar panel to make more energy and learn new things. You can make your system work better by 12-25% each year with a solar tracking system in sunny places:

• Single-axis trackers make 12-25% more electricity than panels that do not move.

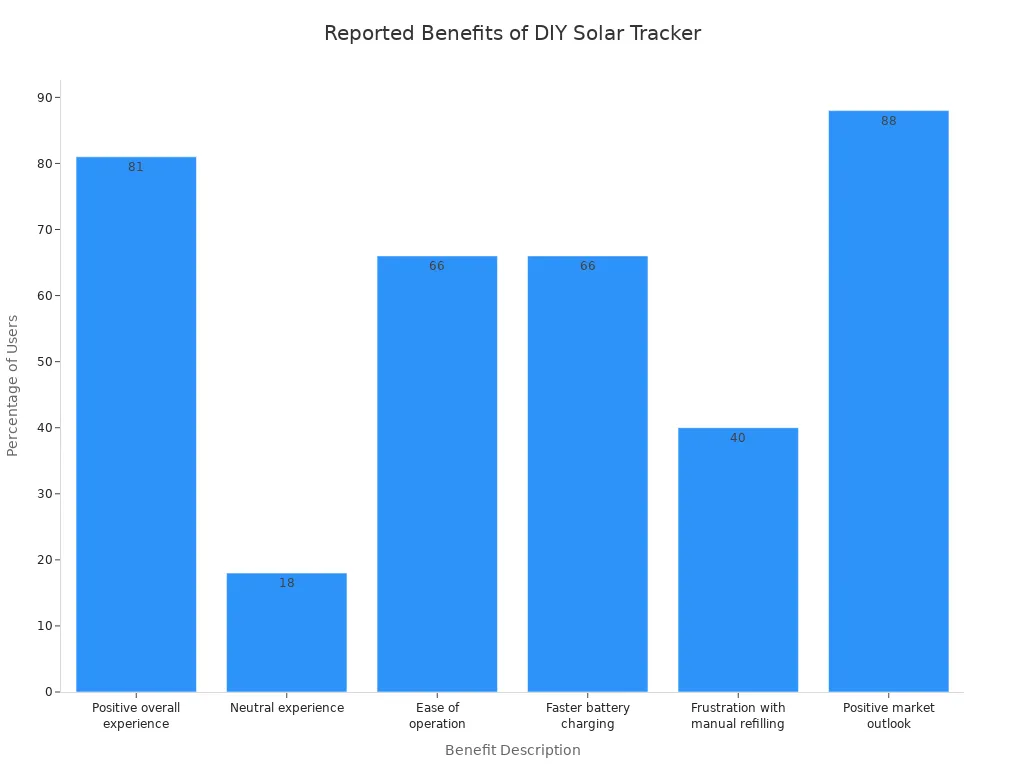

Most people say they have a good time and like doing these projects:

You get more energy, save money, and feel proud when you build your own system.

Key Takeaways

• Making your own solar tracker can help your panels make 10-40% more energy. This means your solar panels work better. Using strong materials like galvanized steel or aluminum keeps your tracker frame tough. These materials help it last longer and stand up to bad weather. Doing regular maintenance is important. You should clean the sensors and check the connections often. This helps your solar tracker work well and last longer. You can build a solar tracker with basic tools. You only need simple programming skills. This makes it easy for many people to try. Joining online DIY groups can help you a lot. These groups give support and ideas as you build and improve your solar tracker.

Is a DIY Solar Tracker Practical?

Efficiency Benefits

If you build a diy solar tracker, your solar panel can make more energy. Studies show that solar trackers can help make over 30% more electricity. Some panels that move can even make about 40% more power than ones that do not move. A vertical single-axis tracker gives the best and most steady results. This helps your batteries charge faster. You also get more energy for your house or other things.

Making a diy solar tracker lets you learn new things. You only need to know some basic Arduino programming to start. Most people use just 50-100 lines of code for a simple tracking algorithm. If you want more features, you can learn more programming, but you do not have to for simple use. You also need to know how to connect photoresistors. This is easy if you know about voltage divider circuits.

When you look at the costs, a diy solar tracker saves you money. Here is a quick table that shows the main cost differences:

You can see that building your own tracker costs less. You also get to work with your hands and learn new skills.

Common Challenges

You might have some problems when you build a diy solar tracker. Some common issues are:

• Clamps or nuts that are not tight can break things over time.

• Braces that are not strong can make the system shaky and cause shade.

• Bad connections between parts can make the system shake in strong wind.

• If the tracker is too close to the ground, it might not move well when it rains.

• If you build on salty soil, metal parts can rust and break.

If you want your solar tracker to last a long time, use strong materials. Companies like EverFaith make solar brackets and frames from galvanized steel and aluminum. These metals do not rust easily and can handle bad weather. A good design and careful building help your tracker work well for many years.

You do not need hard skills to begin. Most people can build one with simple tools and patience. If you have problems, you can ask for help in online diy solar tracker groups. With good planning, you can enjoy a solar tracker that works well and gives you more energy.

Solar Tracking System Basics

How Solar Trackers Work

A solar tracking system helps your solar panels follow the sun as it moves across the sky. You can collect more sunlight because the panels always face the sun. Fixed panels stay in one place and miss out on sunlight during the morning and evening. When you use a diy solar tracker, you boost your energy collection. Single-axis trackers can give you 15% to 35% more power each year than fixed panels. This means your system works better all day, not just at noon.

Types of Trackers

You can choose from different types of trackers for your diy solar tracker project. Each type has its own benefits and challenges.

• Single-Axis Trackers: These move your panels in one direction, usually east to west. You get about 15-25% more energy than with fixed panels. The setup is not too hard.

• Dual-Axis Trackers: These move in two directions, following the sun up and down and side to side. You can get 30-40% more energy, but the system is more complex and costs more. Most people use single-axis trackers for their diy solar tracker because they are easier to build and maintain.

You may see dual-axis trackers in some large projects, but they are less common because they need more parts and repairs.

Panel Spacing Tips

When you set up your solar tracking system, you need to think about panel spacing. If you put panels too close together, they can shade each other and lower your energy output. Leave enough space so each panel gets full sunlight all day. You can use strong solar brackets and structures, like those from EverFaith, to keep your panels steady and safe. Good spacing and sturdy mounts help your diy solar tracker last longer and work better, even in bad weather.

Tip: Always check your site for shadows from trees or buildings before you install your panels. This helps you get the most energy from your solar tracking system.

DIY Solar Tracker Parts

Essential Components

You need a few main parts to build a diy solar tracker. Each part does something important. The table below shows common parts and their usual prices:

A microcontroller, like Arduino, helps move the panel. Light sensors find the brightest sunlight. Motors turn the panel to follow the sun. The mounting frame keeps everything together. You can use old materials for the frame.

Tools and Materials

You need some simple tools and materials to build your diy solar tracker. Here is a list:

• Screwdrivers and pliers

• Wire cutters and strippers

• Soldering iron for strong wire connections

• Measuring tape

• Wrenches

• Electrical tape and zip ties

Tip: Wear safety glasses when you cut or solder wires.

You might want to use materials that can handle bad weather. EverFaith makes brackets and mounts from strong metals. Their products do not rust and last in tough weather. You can get solar brackets, screw pile posts, and full solar panel systems from EverFaith. These choices help your diy solar tracker work longer.

Sourcing Parts

You can buy diy solar tracker parts online or at stores near you. Sunchaser8 ships fast and gives support in the U.S. You get replacement parts quickly, so your system keeps working. They also help with installation and give warranty support.

If you want strong frames that are easy to use, EverFaith is a good pick. They have solutions for small and big projects. Their products include solar farm mount brackets and off-grid PV solar panel systems. You can trust their quality when you build your diy solar tracker.

Solar Tracking System Assembly

Mechanical Setup

First, build a strong base for your diy solar tracker. A sturdy base keeps your system safe and working well. Use a pile guide frame to put the foundation in the right place. This helps you avoid mistakes later on. Make sure the drive system lines up with the mounting frame. If it does not, the gearbox can break early and your tracker might not follow the sun right.

Check if the torque tube and bearings are lined up. If not, you will get friction and uneven pressure. Always use the torque settings from the motor company. This stops shaking and keeps your system steady. After you put the parts together, turn the torque tube by hand. It should move easily. If it feels stuck, check the alignment again.

Keep your solar panels spaced apart. If they are too close, they will block sunlight from each other. This lowers your energy. Put clamps and brackets in the same spots on every panel. This keeps everything balanced and strong. EverFaith makes solar brackets and frames from galvanized steel and aluminum. These metals do not rust and can handle strong wind or heavy snow. Their products work for both small and big diy solar tracker projects.

Tip: Always check your panel spacing before you tighten all bolts. Good spacing gives you more sunlight and better results.

Installing Actuators

A dual axis solar tracker uses two actuators. One moves the panel left and right. The other moves it up and down. You can use linear actuators or servo motors for this. Attach each actuator to the frame and the moving part of the panel. Make sure the actuators are straight and tight. If you put them at an angle, the tracker might not move well.

Test each actuator by moving it a little bit. Watch for shaking or weird sounds. If you see problems, check the mounting spots and tighten them. EverFaith has mounting systems that make it easy to attach actuators and keep them steady. Their brackets fit many panels and actuators, so you can build a system that fits your needs.

Wiring and Safety

When you wire your diy solar tracker, always think about safety. Turn off all power before you start. This keeps you safe from shocks or burns. Wear gloves, safety goggles, and shoes that do not slip. If you work on a roof or high place, use a safety harness.

Check all wires before you hook them up. Look for cuts or damage. Use sealed boxes to keep water out. Make sure all connections are tight. If you see loose wires, fix them right away. A dual axis solar tracker often uses four photoresistors in a cross shape. This helps the Arduino read sunlight from all sides. The Arduino uses these readings to move the panel and keep it facing the sun. This wiring method helps your solar tracking system stay safe, even when the weather changes.

Note: Never work on the wiring when the system is on. Always check that everything is off before you touch any wires.

Weatherproofing

You want your diy solar tracker to last a long time. Weatherproofing keeps your system safe from rain, dust, and wind. Use waterproof stepper motors or actuators. These motors have sealed covers and protected wires. They keep water out and work well in wet places.

Pick materials for your frame and brackets that do not rust. Galvanized steel and aluminum are good choices. EverFaith makes solar brackets and mounting systems that handle tough weather. Their products have weatherproof seals and enclosures with IP65 ratings. This means they block dust and water. You can also add lightning protection to keep your electronics safe from power surges.

If you want extra safety, use weather sensors. These sensors can tell your solar tracking system to move to a safe spot during storms. Good weatherproofing lowers repair costs and keeps your dual axis solar tracker working longer.

Tip: Check your system after big storms. Look for water inside boxes or rust on metal parts. Fix problems early to stop bigger repairs later.

Troubleshooting and Optimization

Common Issues

You might run into problems when you build or use a diy solar tracker. Sometimes, the panels stop moving if the motors lose power. Wires can come loose and cause trouble. If dust covers the sensors, they may not see sunlight. Your dual axis solar tracker might not follow the sun if the actuators are not lined up right. If you hear weird noises or feel shaking, check for loose bolts or parts that are worn out. Bad weather can also hurt your system. Heavy rain or strong wind can break brackets or frames. EverFaith solar brackets are made from strong galvanized steel and aluminum. These materials help your system stay safe in tough weather.

Tip: Clean your sensors and check all wires and bolts often. This helps your diy solar tracker work well.

Testing Performance

You need to test your diy solar tracker to see if it works right. Watch how the panels move during the day. If your dual axis solar tracker does not follow the sun, check the sensor numbers. Use a multimeter to measure the voltage from each sensor. Compare the energy you get with a fixed panel. If you see less power, look for shade or parts that are not lined up. Try moving the panel by hand to see if the actuators work. Write down your results in a notebook. This helps you find problems and fix them faster.

Note: You can join the DIY Solar Power Forum to ask questions and share what you learn. The Elektroda Forum also has tips for simple solar tracker projects.

Maximizing Efficiency

You can make your diy solar tracker work better with regular care. Make a schedule for checking your system and follow it. Look for worn parts, things that are not lined up, and dirt. Calibrate your sensors and check the alignment often. This keeps your dual axis solar tracker working well. EverFaith solar brackets are easy to install and give strong support. Their products do not rust and can handle strong wind. You can use them for small rooftops or big solar farms.

• Clean the sensors and panels to get rid of dust.

• Tighten bolts and look for rust.

• Calibrate the sensors and actuators.

• Check brackets and frames for damage.

• Write down energy output and compare it to old results.

Callout: Doing regular checks and calibration helps you get more energy from your diy solar tracker. You can find help and tips in online groups.

You now know how to build a diy solar tracker. This project gives you more energy. It saves space. It helps your batteries last longer.

FAQ

How much more energy can a solar tracker give me?

You can get 10–40% more energy with a solar tracker compared to fixed panels. The exact gain depends on your location and the type of tracker you build.

What materials should I use for my solar tracker frame?

Choose strong materials like galvanized steel or aluminum. These metals resist rust and last longer. EverFaith makes solar brackets and frames that handle tough weather and keep your panels safe.

Can I install a solar tracker by myself?

Yes, you can install a solar tracker if you follow clear steps and use basic tools. EverFaith designs their mounting systems for easy installation, so you spend less time setting up.

How do I protect my solar tracker from bad weather?

Use weather-resistant brackets and sealed enclosures for wires. EverFaith’s solar structures handle high winds and snow. Always check your system after storms to keep it working well.

Where can I find parts for my DIY solar tracker?

You can buy parts online or at local stores. For strong and reliable brackets, look for EverFaith products. They offer solutions for homes, farms, and off-grid systems.
