Original Solar Panel Carport System

Overview of the Solar Panel Carport System

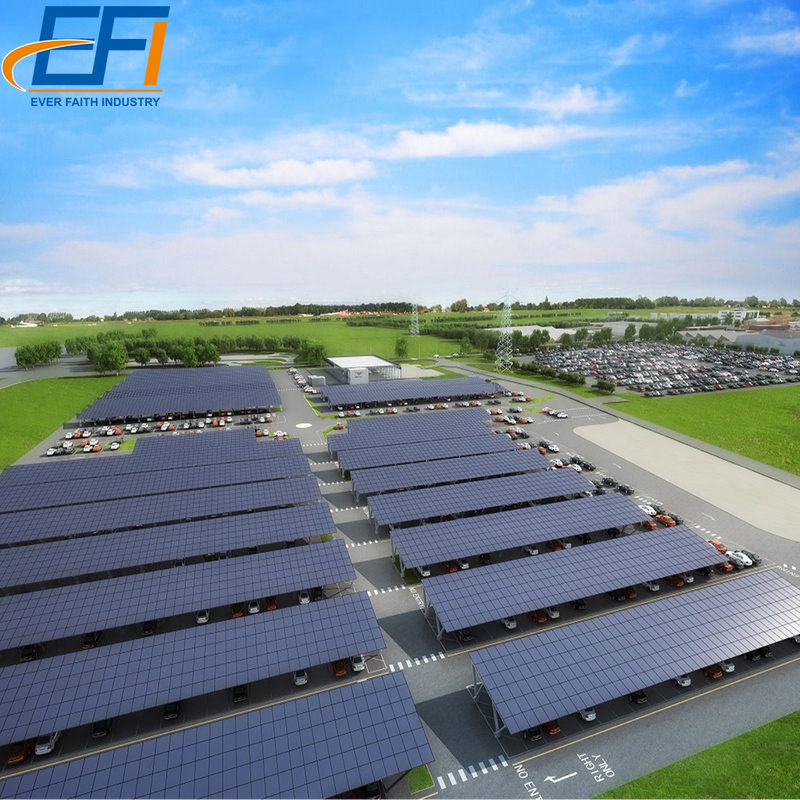

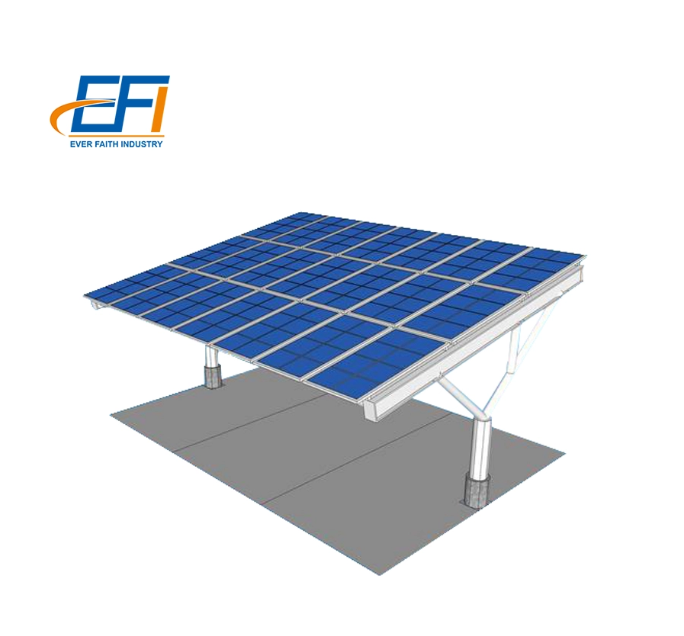

The Original Solar Panel Carport System integrates a parking shelter with a photovoltaic (PV) array. Solar modules installed above parking spaces convert sunlight into electricity while providing shade and weather cover for vehicles below. The product is supplied as a structural mounting system based on aluminum 6063 extrusions and stainless steel fasteners; solar panels, inverters, batteries, and cable sets are configured against each project's load and site data. EFI provides pre-sales layout and structural design; on-site installation service is not included. The system is suitable for commercial users, enterprise customers, public facilities, and industrial clients planning to use existing parking areas for on-site power generation.

Technical Specifications for the Solar Panel Carport System

Structural and Electrical Data for the Solar Panel Carport System

Scope of Supply for the Solar Panel Carport System

The standard scope includes vertical columns, support beams, rails, panel clamps, and stainless steel fasteners, with anodized or powder-coated surfaces. Compatible modules include monocrystalline and polycrystalline silicon panels. Battery storage (lead-acid or lithium ion), MPPT or PWM controllers, and 220V/380V electrical components are quoted as optional items. Each order is confirmed with a layout drawing, a bill of materials, and stated wind and snow load values.

Key Features of the Solar Panel Carport System

Dual-Function Parking and Power Generation

The structure covers marked parking spaces and supports a PV array at the same time, converting paved parking areas into generation capacity.

Corrosion-Resistant Construction

Aluminum 6063 components are supplied with an anodized or powder-coated surface, and fasteners are stainless steel, supporting outdoor use with documented wind load resistance of 150 km/h and snow load capacity of 1.4 kN/m².

Scalable Layout and Optional Accessories

Bays can be repeated to extend the array, and the structure can be arranged for lighting, cable management, and electric vehicle charging equipment, which are specified separately.

Applications for the Solar Panel Carport System

Commercial and Public Parking

Office buildings, shopping malls, hospitals, schools, airports, and government sites can cover visitor and employee parking while supplying on-site loads.

Industrial and Enterprise Facilities

Industrial parks, logistics sites, and warehouses can pair covered parking with power for offices, production areas, or distribution panels.

Electric Vehicle Charging Stations

The carport can be configured above charging bays so the PV array supplies charging equipment; charger models and grid-connection terms are confirmed per project.

FAQ About Solar Panel Carport Systems

Is a solar panel carport more costly than a conventional carport?

The initial cost is higher because the scope includes modules, mounting structure, and electrical components. Buyers evaluate it against electricity savings, shading use, and site requirements; EFI provides itemized quotations for comparison.

Can an existing parking lot be converted?

Yes, subject to clearance, solar access, ground bearing, drainage, and electrical access. Site data and photographs are reviewed during the pre-sales design stage.

What approvals and site data are required?

Buyers typically provide the site location, local wind and snow data, parking dimensions, chosen module model, and preferred layout. Structural and electrical designs are then prepared for review against local building codes.

How does the structure perform in wind and snow?

The documented design values are wind load resistance of 150 km/h and snow load capacity of 1.4 kN/m². Project-specific calculations are provided with the layout drawing.

Where does the generated electricity go?

Electricity can supply on-site loads through a distribution panel, charge storage batteries, feed the grid, or supply electric vehicle chargers, depending on the configuration and local grid rules.

Business buyers can send site dimensions and load requirements to receive a layout drawing, bill of materials, and quotation.
