As solar energy becomes an increasingly important part of commercial infrastructure, solar carport structures offer businesses a practical way to generate clean electricity while making better use of existing parking spaces. However, selecting the right solar carport structure involves more than choosing a suitable design or material. Factors such as wind and snow loads, structural stability, column spacing, drainage, corrosion resistance, and foundation requirements all play a critical role in long-term performance and safety. This guide explores the essential specifications, structural configurations, and key considerations to help commercial project developers, contractors, and buyers choose a reliable and cost-effective solar carport solution.
A solar carport is a structure first and a power plant second. Before the array output matters, four physical jobs have to be settled: hold the modules at the designed tilt, keep a defined clear height over the parking bay, shed rain away from vehicles and walkways, and transfer wind and snow load into a foundation that the site can accept.
Those four jobs conflict with each other, which is why carports cannot be bought from a catalogue the way a rooftop rail can. Raising the clear height increases the lever arm at the column base and raises the wind moment. Widening the bay to fit door-opening clearance deepens the beam and increases steel weight per kW. Adding tilt improves yield but adds height at the high edge and changes the drainage slope. Every one of those trade-offs has to be written down, because a supplier who is not told the constraint will optimise for the one that is cheapest to build.
The product itself is a mounting structure, not a generating unit: the canopy carries the modules, and the inverter, metering and any storage are specified separately. A supplier that quotes the structure should be able to state what module format and what array layout the frame was designed around.
The first real decision is the column arrangement, and it is decided by how drivers use the bay rather than by steel cost per tonne.

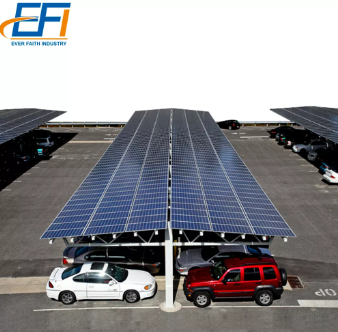

A single-column canopy uses one post per bay with a cantilever beam. It clears the space between two cars, so doors open without a post in the way, and it suits visitor parking, short runs and sites where the visual line matters. The price is structural: the cantilever puts the whole canopy load into one base, so the foundation and the column section carry more moment than an equivalent dual-column span.
A dual-column canopy uses two posts per span. It is the cheaper frame per square metre and the more stable one in high wind, but the posts have to sit somewhere. On a large employee or fleet lot they can be placed in the island between bay rows, where they do not obstruct doors. On a tight layout they end up in the tyre path, which is exactly where you do not want a footing.
A useful way to settle the question is to draw the wheel stops and the door swing zones before drawing the columns. If the columns can only land inside a door swing, the layout is asking for a single-column canopy regardless of the budget. If the lot has long parallel rows and a generous island, dual-column will usually be cheaper and stiffer.
Both arrangements are available across the solar carport structures range, including single-bay and multi-bay connected layouts that can be adapted to irregular lot boundaries rather than forced into a rectangular grid.
A carport drawing set that does not carry these numbers is not a specification, it is a sketch. Each one changes the steel, the foundation or the price.
Item | What to write down | Why it changes the design |
|---|---|---|
Clear height | Height to the lowest panel or beam edge, in metres, plus the vehicle mix it serves | Sets column height and the wind lever arm; must clear vans and service vehicles, not only cars |
Bay width and column spacing | Centre-to-centre distance, and whether posts fall inside door swings | Drives beam depth and steel weight per kW |
Tilt | Degrees, and which edge is high | Sets yield, high-edge height and the drainage slope |
Module format | Frame size, cell format, portrait or landscape, clamp zone | Rail spacing and clamp positions follow the module, not the frame |
Design wind speed | Value, averaging period, and the code edition used | The governing load case on an open canopy is uplift, not dead weight |
Snow load | kN/m² or psf, with the roof zone or drift assumption | Governs purlin spacing and, in heavy snow regions, the number of posts |
Corrosion class | Environment category and the coating thickness required | Decides galvanising versus anodising and the maintenance plan |
Foundation type | Screw pile, pad, or ballast, with the soil assumption | Changes the programme, the permits and the removal cost at end of life |
Published carport specifications commonly quote 2.2 to 2.5 m clear height and 5.0 to 5.5 m column spacing for passenger vehicles. Treat those as a starting point for a conversation with the parking authority, not as a code value: the binding number is whatever the local parking and access rules require, and a lot that takes delivery vans or ambulances needs more.
Two further points belong on the same drawing. First, the module clamping zone: the module manufacturer defines where a clamp may grip the frame, and a carport rail spaced for one module model will not necessarily accept another. Second, the access path for maintenance: a canopy that cannot be reached safely for cleaning or fault-finding will be cleaned less often than its yield assumes.
On a rooftop array, the roof contributes dead load and the structure is tied into an existing diaphragm. On a carport, the canopy is an open structure sitting on its own foundations, and the wind does not simply push on it. It accelerates under the canopy, separates at the leading edge, and produces suction on the upper surface that is strongest at corners and at the windward edge of each row.
The practical consequence is that the design is usually governed by net uplift on the corner and edge zones, not by the weight of the modules. A canopy that is adequate in the middle of a row can fail at the end of the row. This is also why the connection details matter as much as the member sizes: base plates, anchor bolts and column-to-beam connections have to be checked for net tension, not just for bearing.
Two things follow for the buyer. Ask for the wind calculation, not only the design wind speed, and check that it identifies the pressure coefficients used at the edges and corners. Then check that the module clamps and rails are covered by a racking listing rather than a generic material certificate. In the United States, UL 2703 is the standard that covers rack-mounting systems together with their grounding and bonding devices and clamping devices for specific module models; a listing is tied to the modules it was evaluated with, which is why a substitution of module model can invalidate the mechanical assumption even when the frame looks identical.
A carport that drips on the cars has failed its primary purpose, and the failure is almost always a detailing one rather than a material one.
There are two approaches. The first is a drained canopy: the modules are laid to a defined slope, and water is collected in rails or gutters that have a continuous path to a downpipe. This works when the tilt is positive and the rail profile is designed as a channel. The second is a sealed canopy: panels are butted together with gaskets and the assembly relies on the joint rather than on a slope. This works only if the joints are mechanically clamped and the gaskets are specified for the local UV and temperature range.
What does not work is a flat array with a bead of sealant along the joints. Sealant ages, the joint moves, and the leak appears two winters later in a place nobody can reach. The specification should therefore state the drainage slope, the gutter or rail capacity, the downpipe positions and the overflow path. It should also state the maintenance assumption: gutters that are never cleared become ponds, and ponding load is not in the original calculation.
Three foundation families are used under carports, and the choice is usually made by the site, not by the frame.
Foundation | Best suited to | Main constraint |
|---|---|---|
Ground screw pile | Open lots with soil cover, tight programmes, sites that must be restored later | Needs a geotechnical view of soil and obstruction; unsuitable on shallow bedrock |
Concrete pad or pier | Sites with good access for plant and a programme that tolerates curing | Excavation, spoil removal and a curing period before the frame can be loaded |
Ballast block | Roof decks, landfill caps, or sites where penetration is prohibited | Dead load has to be carried by the surface below, and the blocks need wind deflectors at the perimeter |
For a parking lot, the ground screw pile is often the fastest route because it removes the curing period from the critical path and can be installed and loaded in the same visit. It also allows the canopy to be removed at end of life with the same equipment, which matters on leased land. The trade-off is that pile capacity is a soil property: the same pile in loose sand and in stiff clay is two different products, so the pile length and helix size cannot be fixed before the soil is known.
Where the soil is competent and the columns land in an island, a pad foundation is simple and well understood by local contractors. Where the site is a deck or a capped fill, ballast is the only option and the design shifts from uplift resistance to dead weight, which changes the frame and the number of blocks per bay.
Carports are the least sheltered mounting product in the catalogue. They are open to driving rain, they collect water in rail profiles, they sit close to vehicle exhaust and, on coastal sites, they are exposed to chloride. Corrosion protection is therefore a design input rather than a finish.
The reference point is coating thickness, measured and recorded, not the word "galvanised". ISO 1461 sets minimum mean coating thicknesses for hot-dip galvanised steel, at 85 micrometres for steel thickness of 6 mm and above and 70 micrometres for steel between 3 mm and 6 mm, with local minima below those means. A specification that says "hot-dip galvanised" without a thickness and a standard is not checkable at goods-in.
The second input is the environment. ISO 9223 classifies atmospheric corrosivity from C1, very low, to CX, extreme, and the category drives how much zinc the coating has to carry. A C2 rural site and a C5 coastal site can use the same frame and get very different service lives. If the site is coastal, the specification should also deal with dissimilar metal contact: stainless fasteners into galvanised steel, and isolation between aluminium rails and steel beams, are what stop the joint corroding before the member does.
Above-ground aluminium parts are covered by an anodic oxide coating rather than zinc, and that coating also has thickness classes, so the same rule applies: state the class, and inspect against it.
Put the two quotations side by side and score them against the eight items in the specification table above. In practice, the differences show up in four places.
The first is scope. One quotation may be the frame only; another may include modules, inverter, cabling and the distribution board. Comparing a frame price with a system price is the most common error in carport procurement, and it flatters whichever supplier wrote the narrower scope.
The second is the module assumption. A frame designed for a 550 W module with a given frame height will not automatically accept a 700 W module with a different clamp zone, and the rail spacing has to be re-checked. Ask which module models the design was checked against.
The third is the foundation. A quotation that excludes the foundation is not comparable with one that includes it, because on many lots the foundation is a material share of the installed cost.
The fourth is documentation. A supplier that can issue a wind calculation, coating thickness records, material certificates and a load test report is selling a checkable product. One that cannot is selling a frame. Both may be legitimate, but they are not the same purchase.
A complete carport package can be quoted as a heavy-duty frame for large commercial bays or as a lighter aluminium canopy where the span and the loading allow; the heavy-duty carport solar mounting rack is specified around prefabricated components and a 25-year design life, with a 20-year warranty, while the lightweight aluminium solar carport structure trades section size for handling weight on smaller bays. The choice between them should follow the span and the wind case, not the price per tonne.
Before any of that comparison is worth doing, four documents should be in hand:
A wind calculation that names the code edition and shows the pressure coefficients used at the canopy edges and corners.
A coating record showing measured thickness against the standard, not a statement that the steel is "galvanised".
A module compatibility statement naming the module models and the clamp zones the design was checked against.
A foundation drawing with the soil assumption stated, so that the pile or pad design can be checked against the geotechnical report.
A solar carport structure is bought twice: once as steel, and once as a set of numbers that somebody has to defend to a permit reviewer, an insurer and a maintenance team. The steel is the easy part, because any competent fabricator can supply a section. The numbers are where projects are lost.
Write the brief before the quotation: clear height to the lowest panel edge, bay width and column positions, tilt, module format and clamp zone, design wind speed with its code edition, snow load, corrosion category with a coating thickness, and the foundation type with the soil assumption behind it. Then require the wind calculation, the coating records and the module compatibility statement with the quote. A supplier who can meet that request is telling you something useful before a single tonne is shipped.
For buyers comparing structural options across ground-mounted, rooftop and canopy applications, the wider solar mounting structures range and the ground screw pile systems used under open canopies follow the same logic: the load case comes first, the section follows. The carport structure range publishes the configuration options, including single-bay and multi-bay layouts, so the brief can be written against real components rather than adjectives.
The two terms are used interchangeably in most procurement documents. A carport usually refers to a structure over marked parking bays, with a defined clear height for vehicles, while a canopy can cover a walkway, a loading area or a larger span without parking underneath. The structural difference is that a carport's geometry is constrained by vehicle movement, so its column positions and clear height are fixed by the parking layout rather than by the array.
Enough for the tallest vehicle that will legally use the bay, measured to the lowest point of the structure rather than to the modules' high edge. Published carport specifications commonly start at 2.2 to 2.5 m for passenger cars, but vans, delivery vehicles and service access usually require more. The binding figure comes from the local parking and access rules for the site, so it should be confirmed with the authority before the frame is ordered.
Yes, and it is the normal case. The constraints are the ones that a new-build lot would also have, plus two: the existing drainage and services under the bays, which determine where a pile can be driven, and the condition of the surface, which determines whether the columns can be founded on it or have to penetrate it. A utility survey and a geotechnical view of the sub-base are worth more at concept stage than a cheaper frame.
In most jurisdictions it does, because it is a structure that people park under and it changes drainage and access. The approval route depends on the local code and on whether the lot is public or private. The submission usually needs the structural calculation, the wind and snow design basis, and a drainage plan, which is another reason to require those documents with the quotation rather than after the order.
The tilt that maximises yield for the latitude is rarely the tilt a carport uses, because height at the high edge, drainage and visual impact all push toward a shallower angle. Many commercial canopies run a low positive tilt that still drains, accepting a small yield loss in exchange for a lower structure and a simpler frame. The specification should state the tilt and the reason for it, so that the trade-off is visible.
The mechanical and bonding requirements are usually evaluated under the same racking standards; UL 2703, for example, covers rack mounting systems together with grounding, bonding and clamping devices for specific module models. The structural design basis is different, because an open canopy is loaded by wind on both surfaces and is not braced by a roof diaphragm, so the wind calculation follows the code's provisions for open or canopy structures rather than those for roof-mounted arrays.
