Choosing the right foundation is an important step in designing a reliable solar mounting system. For ground-mounted photovoltaic (PV) projects, ground screw piles and concrete foundations are two common options, but they differ in installation methods, soil suitability, construction time, and long-term maintenance.
Ground screw piles can simplify installation by reducing excavation and eliminating concrete curing. Concrete foundations offer flexible structural configurations and may be preferable where ground conditions make screw pile installation difficult.
However, neither foundation type is suitable for every project. The best choice depends on soil conditions, wind loads, mounting structure design, environmental exposure, and total installed costs.
This guide compares ground screw piles and concrete foundations to help solar developers, EPC contractors, and project buyers make informed foundation decisions.
Ground screw piles are steel foundation elements installed into the soil using rotary equipment. Depending on their design, they transfer structural loads through shaft resistance, helical plates, or other soil-contact surfaces.

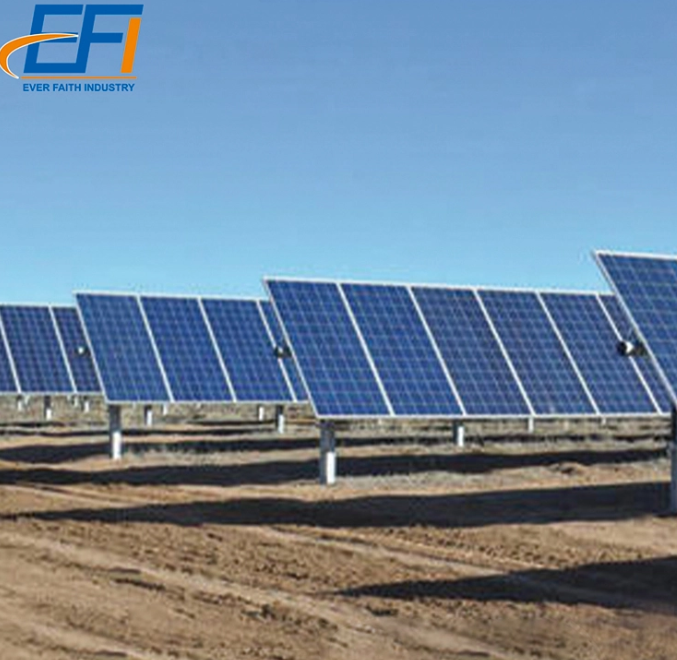

In solar mounting applications, ground screws provide support for mounting posts and structural frames without requiring conventional concrete footings.
Their main advantages include:
Faster installation: No concrete curing period is required.
Limited excavation: Installation generally produces less excavated material.
Reduced site disturbance: Suitable for certain agricultural and environmentally sensitive sites.
Potential removability: Some ground screws can be extracted when a temporary installation is dismantled.
Flexible connections: Different pile head configurations can accommodate compatible mounting structures.
These advantages depend on suitable soil conditions, correct foundation sizing, and appropriate installation equipment.
Concrete foundations distribute structural loads to the ground through bearing, self-weight, and other resistance mechanisms determined by their design.
Common configurations include reinforced concrete footings, piers, and pads. The appropriate type depends on the mounting structure, soil bearing capacity, and expected loads.
Concrete foundations may be preferred where ground screws cannot penetrate the required depth or where a particular structural configuration calls for an engineered concrete base.
However, concrete construction generally requires excavation, reinforcement installation, concrete placement, and sufficient strength development before loading.
Comparison Factor | Ground Screw Piles | Concrete Foundations |
|---|---|---|
Installation method | Mechanically screwed into the ground | Excavation and concrete placement |
Curing time | Not required | Sufficient strength development required |
Excavation | Generally limited | Depends on foundation design |
Soil suitability | Requires suitable penetration and load resistance | Depends on soil bearing capacity and footing design |
Site disturbance | Usually lower | May involve more excavation and spoil |
Removal | Often possible | Usually requires excavation or demolition |
Durability considerations | Steel corrosion protection | Concrete and reinforcement durability |
Typical application | Ground-mounted solar arrays with suitable soil | Projects requiring engineered concrete support |
The most suitable foundation is the one that meets structural and geotechnical requirements while providing acceptable installation and lifecycle costs.
Ground screw piles can perform effectively in suitable sands, clays, and other soils capable of providing the required resistance.
However, their performance depends on soil strength, pile geometry, embedment depth, and installation quality.
Before specifying ground screws, engineers should evaluate the soil profile, groundwater conditions, potential obstructions, and required foundation loads.
For example, a ground screw may be practical in stable soil with sufficient embedment depth but unsuitable where shallow bedrock prevents installation.
A geotechnical investigation is essential because the same ground screw can perform differently under different soil conditions.
Concrete foundations may offer a practical alternative when conventional ground screw installation is difficult.
Common situations include:
Shallow bedrock: The required screw pile embedment may not be achievable.
Underground obstructions: Buried debris or existing structures may interfere with pile installation.
Special structural requirements: Certain mounting configurations may require different foundation stiffness or geometry.
Project-specific requirements: Local engineering practices or approval conditions may favor concrete construction.
However, concrete foundations are not automatically suitable for very soft or unstable soils. Such sites may require ground improvement, deep foundations, or other engineered solutions.
Site Condition | Recommended Starting Point | Main Reason |
|---|---|---|
Suitable soil with sufficient embedment depth | Ground screw piles | Efficient installation with limited excavation |
Shallow bedrock | Engineered concrete or alternative foundation | Screw penetration may be restricted |
High groundwater level | Evaluate ground screw piles | May reduce excavation and dewatering |
Very soft soil | Site-specific foundation design | Additional bearing capacity assessment is required |
Temporary solar installation | Ground screw piles | Potential removal and site restoration |
Aggressive soil environment | Corrosion-engineered foundation | Long-term durability requires assessment |
The final decision should be confirmed through geotechnical investigation and structural design rather than general soil classifications alone.
Ground screw foundations can shorten certain construction activities because they do not require concrete pouring or curing.
Once properly installed and accepted, the mounting structure may be assembled without waiting for concrete strength development.
This can be advantageous for large ground-mounted solar projects involving repetitive foundation layouts.
Ground screws also typically produce less excavated soil and may reduce disturbance to existing vegetation.
However, installation efficiency depends on site accessibility, equipment availability, pile dimensions, and ground conditions. Unexpected rock or buried obstructions may require pre-drilling or an alternative foundation design.
Concrete foundations generally involve more construction stages, including excavation, reinforcement, placement, and strength verification.
Foundation costs should be evaluated across the complete installation process rather than by material price alone.
Cost Factor | Ground Screw Piles | Concrete Foundations |
|---|---|---|
Materials | Steel piles and connections | Concrete, reinforcement, and anchors |
Equipment | Rotary installation machinery | Excavation and concrete equipment |
Labor | Depends on installation conditions | Depends on construction method |
Construction schedule | No curing period | Strength development may affect progress |
Quality verification | Installation records and load testing | Material testing and inspections |
Removal | Potentially easier | Often more labor-intensive |
Ground screws may offer cost advantages where suitable soil allows efficient installation.
Concrete foundations may be more economical when screw installation requires extensive drilling or specialized equipment.
The most meaningful comparison is the total installed and verified foundation cost, including engineering, testing, labor, and schedule requirements.
Ground screw piles remain in contact with soil and groundwater throughout their service life. Their durability depends on soil chemistry, moisture conditions, steel thickness, and corrosion protection.
Hot-dip galvanizing is commonly used to protect steel foundations. ISO 1461 provides requirements for hot-dip galvanized coatings on fabricated steel articles.
However, coating compliance alone does not guarantee a specific service life in every environment.
Projects involving aggressive soils, coastal exposure, or fluctuating groundwater may require additional corrosion protection or design allowances.
Cold climates introduce another consideration: frost heave. Ground screw foundations must be designed with the local frost depth and soil movement in mind.
For sloping sites, foundation loads and pile head adjustments must also be checked against the mounting system's structural requirements.
Solar mounting foundations must resist compression, wind uplift, lateral forces, and other loads required by the structural design.
Wind uplift is especially important for ground-mounted PV systems because solar panels create exposed surfaces that transfer forces through the mounting structure to the foundations.
Ground screw capacity depends on the pile configuration and the interaction between the foundation and surrounding soil.
The required diameter, length, wall thickness, and connection details should therefore be determined from project-specific loads and geotechnical information.
A foundation should not be selected solely from a standard product dimension or a general load-capacity claim.
Foundation verification typically combines engineering analysis with appropriate site testing and installation records.
Important checks include:
Geotechnical investigation: Confirms soil conditions and expected resistance.
Trial installation: Identifies potential installation difficulties.
Installation records: Document pile position, depth, and relevant installation measurements.
Field load testing: Evaluates foundation response under specified loading.
Engineering acceptance: Confirms compliance with project design requirements.
Installation torque may support quality control where a suitable relationship with foundation capacity has been established.
However, torque alone does not universally prove uplift or lateral capacity. The relationship depends on pile design and soil conditions and may require validation through field testing.
Concrete foundations are verified through different procedures, including reinforcement inspection, material documentation, and concrete strength testing.
Both foundation types require appropriate engineering and quality control.
Foundation selection should be coordinated with the solar mounting structure rather than treated as a separate purchasing decision.
The connection between the foundation and support frame must accommodate design loads, structural geometry, and installation tolerances.
For conventional ground-mounted PV arrays, ground screws may provide an efficient support solution where soil conditions are suitable.
EFI's Solar Ground Screw Pile Mounting System provides a relevant product reference for projects evaluating screw-based solar foundations.
Different mounting structures can also create different foundation requirements. For example, solar carports and tracking systems may involve additional load combinations or connection considerations compared with fixed-tilt ground-mounted arrays.
Buyers should confirm that the selected foundation is compatible with the complete mounting system before procurement.
A ground screw specification should include more than its nominal diameter and length.
Specification | Why It Matters |
|---|---|
Steel grade | Defines material properties |
Shaft diameter and wall thickness | Influence structural performance |
Pile length | Must provide suitable embedment |
Helix or screw configuration | Affects load transfer and installation |
Surface protection | Supports durability in the expected environment |
Pile head connection | Must match the mounting structure |
Installation requirements | Determine equipment and quality control |
Testing requirements | Establish acceptance criteria |
Buyers should also confirm project quantities, production lead times, delivery requirements, and available technical documentation.
For international solar projects, local structural design requirements and installation standards should be reviewed before finalizing the foundation specification.
For EPC contractors and solar project developers, a straightforward selection process can reduce design conflicts and procurement risks.
Review the geotechnical report. Identify soil conditions, groundwater, obstructions, and depth to competent material.
Confirm structural loads. Establish the required uplift, compression, lateral, and other foundation design actions.
Evaluate foundation options. Compare ground screws, concrete foundations, and any necessary alternatives.
Verify compatibility. Check foundation connections against the selected solar mounting structure.
Confirm testing and durability requirements. Establish installation acceptance criteria and corrosion protection.
Compare total project costs. Include materials, equipment, installation, testing, and construction schedule.
Selecting the foundation and mounting structure together helps reduce the risk of incompatible connections, unexpected site modifications, and installation delays.
Ground screw piles and concrete foundations can both provide reliable support for solar mounting systems when properly designed and installed.
Ground screw piles are often attractive for projects requiring efficient installation, limited excavation, and reduced site disturbance, provided the ground conditions are suitable.
Concrete foundations remain a practical alternative where screw pile installation is restricted or project-specific structural requirements favor concrete construction.
The best choice depends on soil conditions, wind loads, foundation capacity, corrosion exposure, installation costs, and compatibility with the mounting structure.
For ground-mounted PV projects, evaluating the foundation and solar mounting system together can help reduce design conflicts and improve installation planning.
Explore EFI's Solar Ground Screw Pile Mounting System or contact EFI to discuss your solar mounting requirements. Providing project location, mounting configuration, ground conditions, and design loads can help support a more productive technical discussion.
Ground screw piles can offer faster installation and less excavation in suitable soils. Concrete foundations may be preferable where screw installation is impractical or where project-specific structural requirements favor concrete. The best choice depends on the site conditions and engineering design.
Rocky ground can make ground screw installation difficult or prevent the required embedment depth. Some sites may require pre-drilling or specialized equipment, while others may be better suited to alternative foundations.
Ground screw capacity is evaluated through engineering analysis, geotechnical information, and appropriate field load testing. Installation records, including torque measurements where applicable, can support quality control but should not replace the required capacity verification.
Their service life depends on steel thickness, corrosion protection, soil chemistry, groundwater conditions, and environmental exposure. The expected design life should be established through project-specific durability assessment rather than a universal lifespan estimate.
Ground screw piles are generally designed to transfer structural loads directly to the soil without conventional concrete footings. However, certain project-specific foundation designs may include additional structural elements or reinforcement.
