Solar Farms Mount Bracket

Overview of the Solar Farms Mount Bracket

The Solar Farms Mount Bracket is a frame-type ground mounting structure for large-scale photovoltaic farms and commercial PV installations. It is supplied in aluminum or hot-dip galvanized (HDG) steel, with published design values of a 150 km/h wind speed and a 1.4 kN/m² snow load. The bracket is commonly deployed in 500 kW project clusters, while larger multi-megawatt sites use repeated rows. It is produced at the manufacturer's Jiangsu, China facility under an ISO 9001 management system, with CE documentation and a published 2-year warranty.

Structure of the Solar Farms Mount Bracket

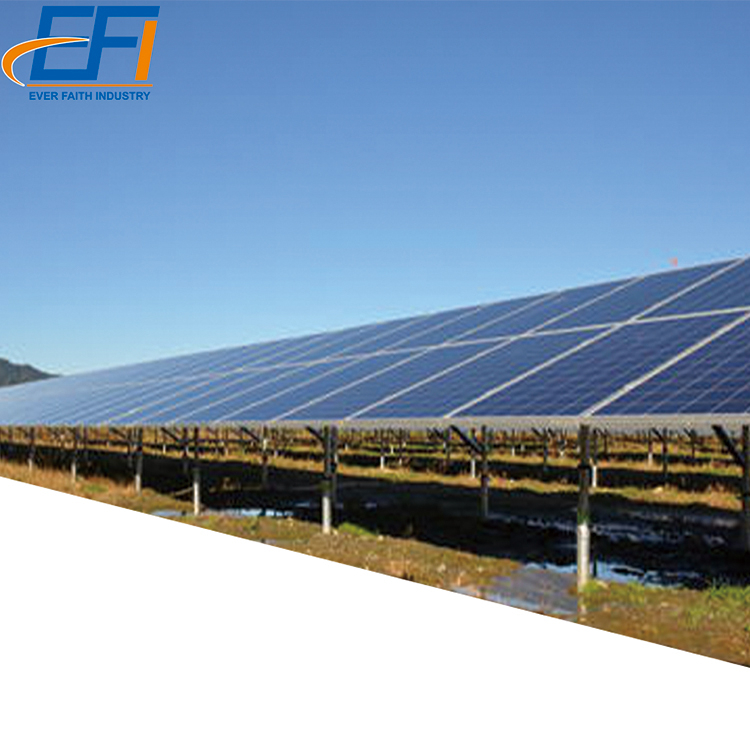

Ground-mounted frame

The system consists of vertical posts, longitudinal beams, transverse purlins and module clamps. Posts are set in the ground according to the site geotechnical report, and row spacing, post height and tilt angle are defined in the project layout. The frame leaves clearance below the modules for maintenance access and, where specified, vegetation below the array.

Material options

Aluminum sections reduce frame weight and resist corrosion without additional coating; HDG steel is selected for inland sites or budget-defined projects.

Specifications for the Solar Farms Mount Bracket

Published Product Parameters for the Solar Farms Mount Bracket

The table below is extracted from the parameter image published on the product page:

Features of the Solar Farms Mount Bracket

Wind and snow performance

The standard model is published with a 150 km/h wind speed, equal to approximately 41.7 m/s, and a 1.4 kN/m² snow load. Site-specific structural calculations confirm member sizes against the applicable loading standard for each project.

Finish and durability

Anodized, powder-coated or polished finishes are available. The natural metallic finish is supplied as standard; powder coating is selected where color matching or added surface protection is specified.

Project scalability

The frame is commonly arranged in 500 kW clusters and replicated across larger sites. Module layout, rail spacing and clamp configuration are adapted to the supplied module datasheet and ground conditions.

Quality and warranty documentation

Production follows the ISO 9001 management system, and CE documentation is issued for shipment. Material certificates, inspection records and packing lists accompany each order.

Applications for the Solar Farms Mount Bracket

Utility-scale ground-mounted photovoltaic farms on open or graded land

Commercial PV sites organized as 500 kW clusters or larger multi-row arrays

Arrays on sloped terrain, with post heights adjusted to follow the ground profile

Installations requiring clearance beneath modules for vegetation or maintenance access

FAQ About the Solar Farms Mount Bracket

What is the wind rating for the solar farm mounting bracket?

The standard model is published with a 150 km/h wind speed, approximately 41.7 m/s. Project-specific values are confirmed against the site wind data and loading standard.

What snow load can the bracket support?

The published snow load is 1.4 kN/m². Structural calculations for each order confirm member sizing against the project's specified snow value.

What materials are used?

Aluminum and hot-dip galvanized (HDG) steel are both available, selected according to site environment, budget and durability requirements.

What surface treatments are available?

Anodized, powder-coated or polished finishes can be selected, with the natural finish supplied as standard.

What is the warranty period?

The published warranty covers 2 years under stated installation and maintenance conditions; warranty terms are confirmed in the order documentation.
