Product Description

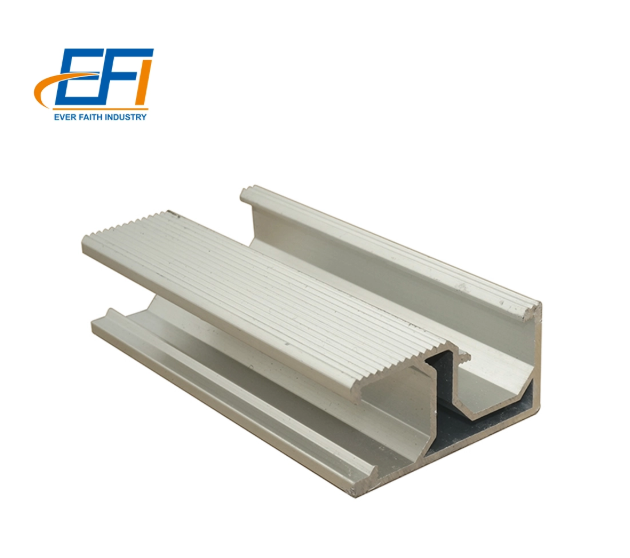

The 6005-T5 PV Solar Panel Mounting System is a frame-type structure that supports photovoltaic modules on rooftops or ground sites. It uses aluminum alloy 6005-T5 as the standard material, with galvanized steel available as an option. The published design values are a wind speed of 150 km/h and a snow load of 1.4 kN/m². The frame is commonly specified for PV systems in the 2-5 kVA range and is produced in Jiangsu, China under an ISO 9001 certified management system, with CE documentation for international markets.

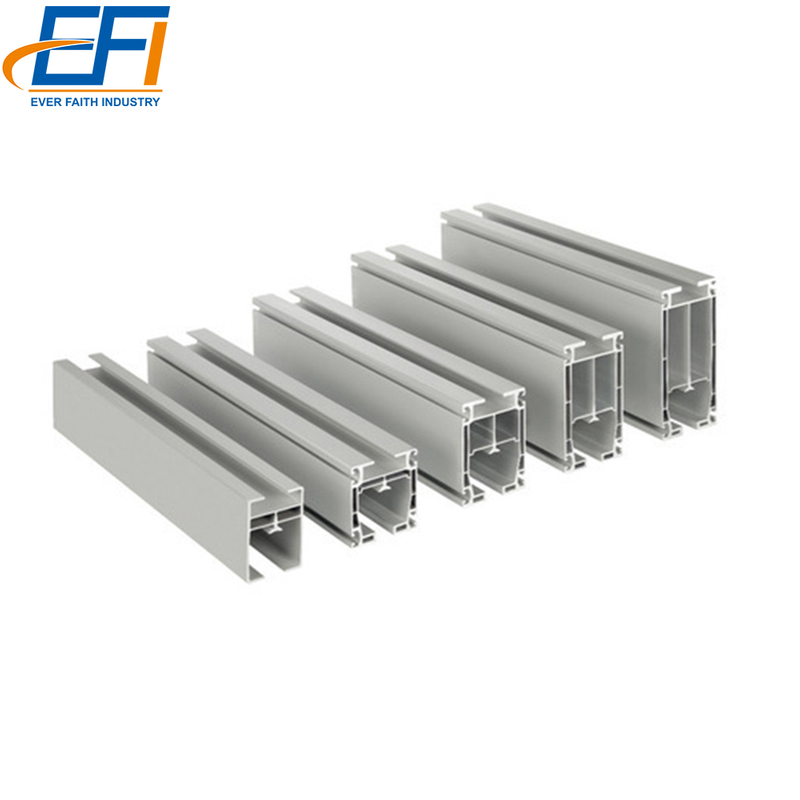

The rails and clamping components are extruded from 6005-T5, an Al-Mg-Si alloy in the T5 temper used for photovoltaic support structures because of its strength-to-weight ratio and corrosion behavior. Galvanized steel can be selected for budget-sensitive projects or defined higher-load cases. Material mill certificates are included with order documentation.
A mounting frame is a mechanical component and has no inverter-style kVA rating. The 2-5 kVA figure indicates the photovoltaic system sizes for which the frame is commonly specified; larger arrays use repeated frame bays. Span and spacing are reviewed against each project's design values, and rail profile dimensions, wall thickness, clamp opening ranges and rail spacing are issued in the project-specific layout drawing.
Parameter | Details |
|---|---|
Place of Origin | Jiangsu, China |
Brand Name | EFI |
Model Number | Any |
Material | Aluminum or Galvanized Steel |
Capacity | 2-5 kVA |
Certificate | ISO9001; CE |
Surface Treatment | Anodized, power coating, polished etc |
Application | Solar panel |
Wind load | 150 KM/H |
Snow load | 1.4 KN/m² |
Model type | Frame |
Color | Natural |
Sample Time | 3-5 days |

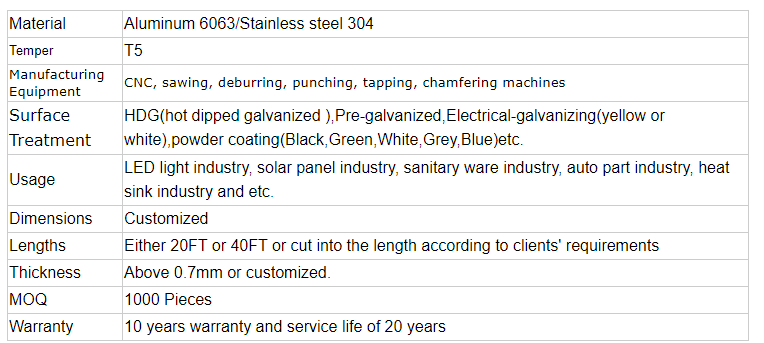

The table below is published on the product page as the manufacturer's general extrusion and fabrication statement:
Capability Item | Published Detail |
|---|---|
Material | Aluminum 6063/Stainless steel 304 |
Temper | T5 |
Manufacturing Equipment | CNC, sawing, deburring, punching, tapping, chamfering machines |
Surface Treatment | HDG(hot dipped galvanized), Pre-galvanized, Electrical-galvanizing(yellow or white), powder coating(Black, Green, White, Grey, Blue)etc. |
Usage | LED light industry, solar panel industry, sanitary ware industry, auto part industry, heat sink industry and etc. |
Dimensions | Customized |
Lengths | Either 20FT or 40FT or cut into the length according to clients' requirements |
Thickness | Above 0.7mm or customized. |
MOQ | 1000 Pieces |
Warranty | 10 years warranty and service life of 20 years |
Anodized, powder-coated or polished finishes are available. Anodizing or powder coating is selected for coastal or industrial environments; the natural finish is supplied as standard.
Sample production takes 3-5 days, supporting pre-qualification for tenders and client approval. The natural aluminum or galvanized surface can receive custom color coatings where project branding is specified.
The frame suits roof and ground scenarios. Module dimensions, layout, rail spacing and clamp configuration are checked against the supplied module datasheet before manufacture.
Production follows the ISO 9001 management system, and CE documentation is issued for shipment. Material certificates, inspection records and packing lists accompany each order.
Commercial rooftop arrays on offices, warehouses and factories where the published wind and snow values apply
Solar carports and canopies requiring a framed support structure
Ground-mounted photovoltaic rows using aluminum or galvanized steel framing
Retrofit photovoltaic projects requiring a certified frame for modules in the stated system size range
It describes the photovoltaic system sizes for which the frame is commonly specified, not an electrical rating of the structure. Multiple bays are used for larger arrays.
Yes. Rail spacing and clamp configuration are adapted to the module dimensions and site conditions, which should be supplied with the enquiry.
Aluminum 6005-T5 is the standard option for lower weight and corrosion resistance; galvanized steel is selected for specific budget or load cases.
Anodizing suits aluminum in corrosive settings, powder coating provides color options, and polishing is available where appearance is specified.
Send the module datasheet, array layout, site location, design wind speed and snow load values, and required quantity. Samples are produced within 3-5 days, and the engineering team confirms rail profiles, clamp settings and finish before production.
